A reverse osmosis system relies on precise pressure and flow control to produce clean water efficiently. One small but vital part of this balance is the RO flow restrictor. It regulates how much wastewater exits the system, ensuring the membrane maintains the right pressure for proper filtration. If the restrictor fails or becomes clogged, your RO system can waste water, lose pressure, or reduce purification quality.
Key Takeaways
- A flow restrictor maintains pressure for proper membrane performance.
- It prevents excess wastewater and poor water quality.
- Replace it whenever you change your RO membrane.
- Correct sizing depends on membrane GPD rating and water pressure.
- A clogged or worn restrictor causes continuous drain flow and slow water output.

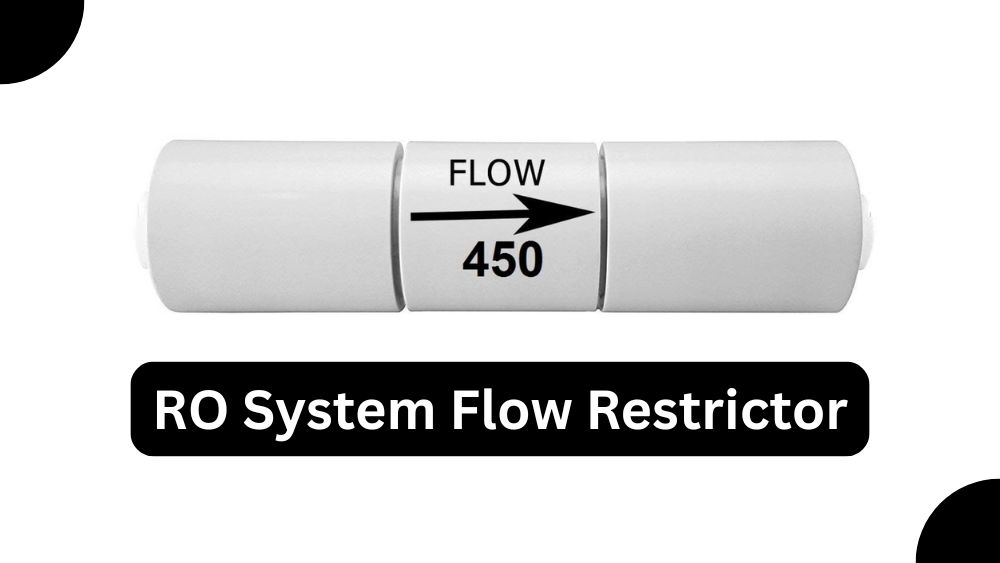

How the RO Flow Restrictor Works
The flow restrictor is attached to the drain line leading away from the RO membrane. Its narrow opening limits the speed of wastewater leaving the system. This controlled resistance builds the pressure needed to push pure water through the membrane while flushing impurities out the drain line.
An ideal restrictor maintains the correct waste-to-product ratio, typically around 3:1. Too large a restrictor lets too much water escape, reducing pressure and purification quality. Too small a restrictor restricts waste flow, causing scaling and early membrane damage. The right balance keeps your RO efficient and safe.
Importance of Correct Flow Restrictor Sizing
Each RO membrane has a specific production capacity, measured in gallons per day (GPD). The flow restrictor must match that capacity to maintain proper back pressure. For example:
- 50 GPD membrane → 500 ml/min restrictor
- 75 GPD membrane → 750 ml/min restrictor
- 100 GPD membrane → 1000 ml/min restrictor
If the restrictor doesn’t match the membrane rating, system performance drops. An undersized restrictor increases pressure and reduces output. An oversized one wastes water and reduces purity. Always verify the restrictor’s flow rating before installation.
When to Replace the Flow Restrictor
1. During Membrane Replacement
Always change the flow restrictor when replacing your RO membrane. Over time, scale and sediment buildup can change its internal diameter, disrupting flow balance.
2. When Upgrading or Downgrading Membrane Size
Switching to a different GPD membrane requires a new restrictor. Using an old one will create an incorrect waste ratio, leading to poor system efficiency.
3. When System Performance Drops
If purified water flow slows or TDS levels rise, the restrictor may be clogged or worn out. Replace it to restore optimal pressure.
4. After 2–3 Years of Use
Even without visible damage, the restrictor gradually loses accuracy due to mineral buildup. Regular replacement ensures steady performance.
5. When Wastewater Flow Is Continuous
If the system drains even when the tank is full, the restrictor could be stuck open or damaged. Replace it immediately.
Signs Your Flow Restrictor Is Failing
- Continuous drainage after the tank fills.
- Low water output or slow faucet flow.
- Higher-than-usual TDS readings in purified water.
- Waste-to-product ratio out of balance.
- Vibration or noise in the drain line.
How to Check and Replace the Flow Restrictor
Turn off the feed-water valve and open the RO faucet to release pressure. Disconnect the drain line at the membrane housing and locate the small inline fitting—this is the restrictor. Remove and inspect it for scale or blockage.
To replace it, simply match the restrictor’s flow rating to your membrane’s GPD rating. Connect the new one in the same direction, ensuring the arrow (if marked) points toward the drain. Flush the system for a few minutes after installation.
Flow Restrictor vs Auto Shut-Off Valve vs Check Valve
| Component | Function | Purpose in RO System |
|---|---|---|
| Flow Restrictor | Limits wastewater flow to maintain pressure | Keeps correct waste-to-product ratio |
| Auto Shut-Off Valve | Stops feed water when the tank is full | Prevents continuous running and water waste |
| Check Valve | Blocks reverse flow of water | Protects membrane from back pressure |
Together, these components keep the RO system balanced, efficient, and protected from mechanical stress or contamination.
RO Flow Restrictor Maintenance Tips
- Inspect the restrictor whenever you change filters or the membrane.
- Replace rather than clean if it’s clogged or scaled.
- Use branded, correctly rated restrictors for accurate flow control.
- Record the replacement date to maintain a service schedule.
- Keep a spare restrictor of the same rating for quick swaps.
Expert Insight
“Most RO systems fail prematurely not because of bad filters, but because the pressure balance is ignored. A properly sized and functioning flow restrictor ensures the membrane works efficiently and the system saves water.” — Technical Specialist, Home Water Systems
Frequently Asked Questions
What happens if I remove the flow restrictor?
Without it, the membrane loses pressure, producing low-quality water and wasting large volumes through the drain.
How often should I replace the restrictor?
Replace it every time you change your membrane or at least every two to three years, depending on water quality.
Can I use any restrictor size?
No. Always match the restrictor to your membrane’s GPD rating. Mismatched restrictors either waste water or damage the membrane.
How do I know if it’s clogged?
If your RO takes too long to fill the tank or TDS levels rise, the restrictor may be partially blocked.
Can I upgrade the membrane without replacing the restrictor?
Not recommended. A new membrane with different capacity needs a matching restrictor for correct flow balance.
Conclusion
The RO flow restrictor may be small, but it’s essential to your system’s performance. It maintains proper pressure, ensures membrane protection, and keeps wastewater under control. Replace it during every membrane change or when signs of failure appear to keep your RO system working efficiently.
